For data center managers and network engineers designing high-speed infrastructures, selecting the right short-reach 100G interconnect solution is a critical decision. Two primary contenders are the 100G SR4 optical transceiver and the 100G QSFP28 Active Optical Cable (AOC). While both achieve the same 100Gbps data rate over multimode fiber for distances up to 100 meters, their architectures, operational characteristics, and ideal use cases differ significantly. This article provides a comparative analysis to inform your selection.
Technical Architecture and Core Specifications

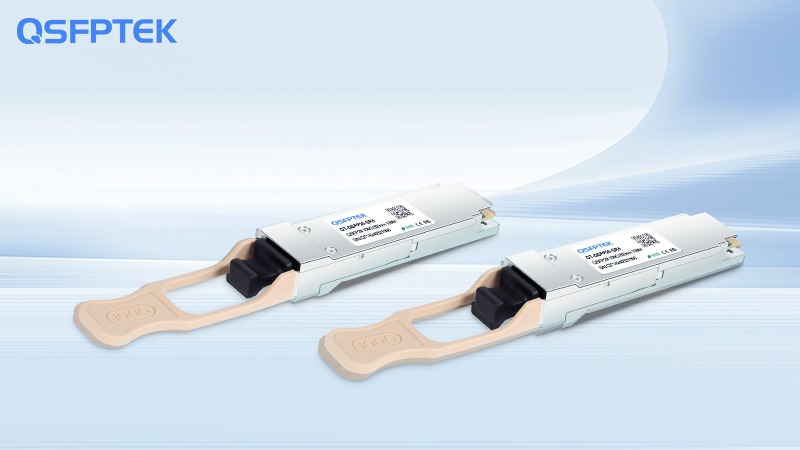

At a fundamental level, the 100G SR4 is a standardized pluggable optical module. It employs a parallel optics design, using four independent 25Gbps lanes to achieve the aggregate 100G bandwidth. It requires connection to an MPO/MTP-12 fiber trunk cable, which is purchased separately. This decoupled design offers inherent flexibility.
In contrast, the 100G QSFP28 AOC is an integrated, factory-terminated assembly. It features fixed QSFP28 connectors on each end, with the fiber and the optical engines permanently fused inside the cable jacket. This “plug-and-play” design is sealed, eliminating the risk of connector contamination or improper fiber mating.
Performance Characteristics: Latency, Stability, and Maintenance
A performance comparison reveals nuanced trade-offs. In terms of raw bandwidth, both solutions are functionally equivalent. However, latency profiles differ. The SR4 module generally offers marginally lower latency due to its direct and simpler signal path, making it a preferred choice for extremely latency-sensitive applications.
When it comes to stability and maintenance, the AOC holds an advantage. Its sealed, pre-tested design ensures consistent performance from the factory, minimizes installation errors, and requires no cleaning of fiber connectors, leading to higher operational reliability in large-scale deployments.
Application Scenarios: Flexibility vs. Operational Efficiency
The choice between these technologies often comes down to specific application needs and operational philosophy.
The 100G SR4 module excels in environments that prioritize flexibility, long-term scalability, and ultimate performance tuning. It is ideal for dynamic network topologies and for scenarios where every picosecond of latency counts.
Conversely, the 100G QSFP28 AOC is tailored for efficiency, rapid deployment, and reduced operational overhead. It is the superior solution for high-density, fixed-configuration links such as inter-rack connections within a row and large-scale data center rollouts where speed and simplicity of installation are paramount.
Total Cost of Ownership Analysis
From a cost perspective, the analysis extends beyond the initial purchase price. While an SR4 module plus a separate MPO cable might have a comparable or slightly higher initial cost than an AOC of the same length, its total cost of ownership differs. The SR4 solution offers potential long-term savings because individual components can be reused or replaced independently. The AOC, while potentially cheaper upfront for a single link, is a complete unit; if one end fails or if a different cable length is needed, the entire assembly must be replaced.
Conclusion
In summary, there is no universally “better” solution. The 100G SR4 optical module offers maximum flexibility, upgradeability, and lower latency, suiting performance-critical and evolving network architectures. The 100G QSFP28 AOC provides exceptional reliability, deployment speed, and operational simplicity, making it ideal for stable, large-scale interconnect applications. The optimal choice depends on carefully weighing your data center’s specific requirements for performance, scalability, management resources, and total cost of ownership.
